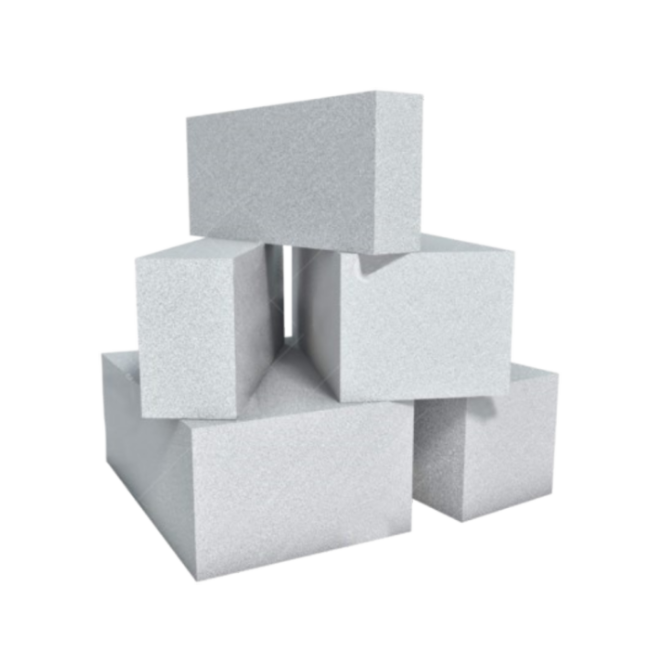

Blocks (classic flat or profiled )

Dimensions/Accuracy (mm)

Length

Height

Thickness



600              +/- 1,5

200/250      +/- 1,0

50-350         +/- 1,5

Density  (kg/m³)

300 - 650

Compressive strength (N/mm²)

2,5-7,5

Thermal insulation

R-value in  W/[m2K]

U-value for 200 mm block



0,09 – 0,16
0,52 W/m².K

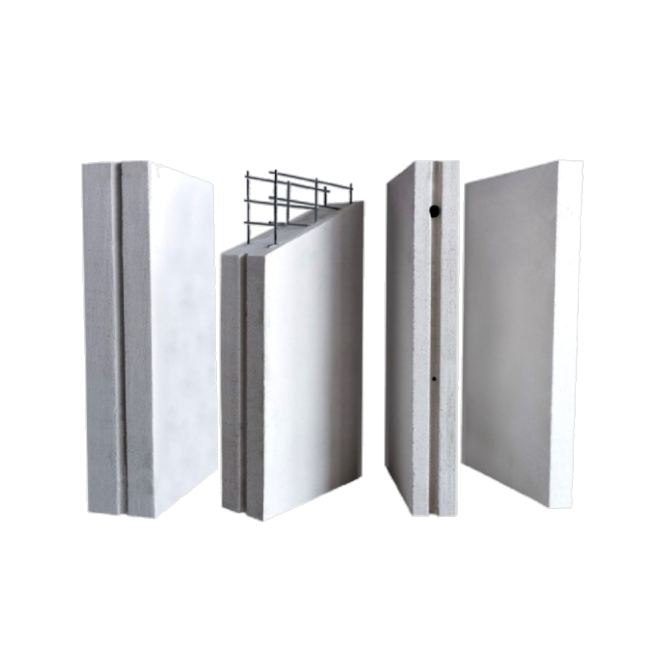

Panels (Wall-, Floor- and Roof panels)

Dimensions/Accuracy (mm)

Length

Height

Thickness



1500-6000    +/- 3,0

600               +/- 1,0

50 -350         +/- 1,5

Density  (kg/m³)

500 - 700

Compressive strength (N/mm²)

3,5-7,5

Thermal insulation

R-value in  W/[m2K]



0,12 – 0,16

Other products

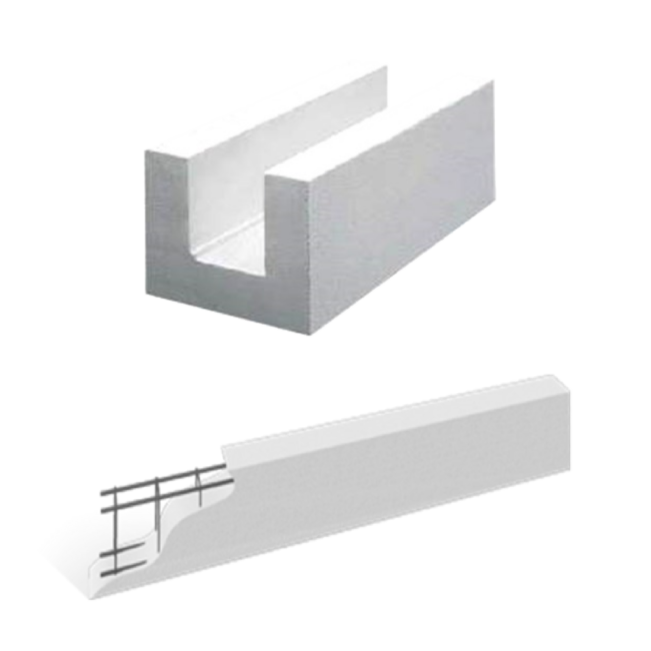

U-Blocks

U-blocks are usual standard blocks, sawed in white stage and used a circular beam or lintel by filling with armature and concrete.





Lintels

Lintels are reinforced elements like panels and used as construction elements to bridge structural gaps like windows and doors cutouts.
